| TECHNICAL SPECIFICATIONS | |
|---|---|
| EARTHQUAKE CONDITIONS | 1st Degree |
| CLIMATE CONDITIONS | Suitable for 3rd climate zone |
| SNOW LOAD | 80 Kg/m² |
| WIND SPEED | 80 Km/Hour (Cabin must be fixed to the ground) |
| METAL PARTS | ST 37 Galvanized metal |
| CEMENT BORAD | TS EN 634-2 Cement Board - Fire reaction class “B” |
| ISOLATION | TS EN 13165 - Polyurethane foam - Fire reaction class “B” |
| CHASSIS LOAD CAPACITY | 200 Kg/m² |
| BASE | |
| SYSTEM | Being applied on specially shaped steel construction and single supporting galvanized profile parts. The area, where the cabin will be located must be leveled. |
| FLOOR COATING | PVC Vinyl with 2.5mm thickness is used as floor covering on boards of odourless and fireproof Cement board with 16mm thickness as base covering of the Cabin. |

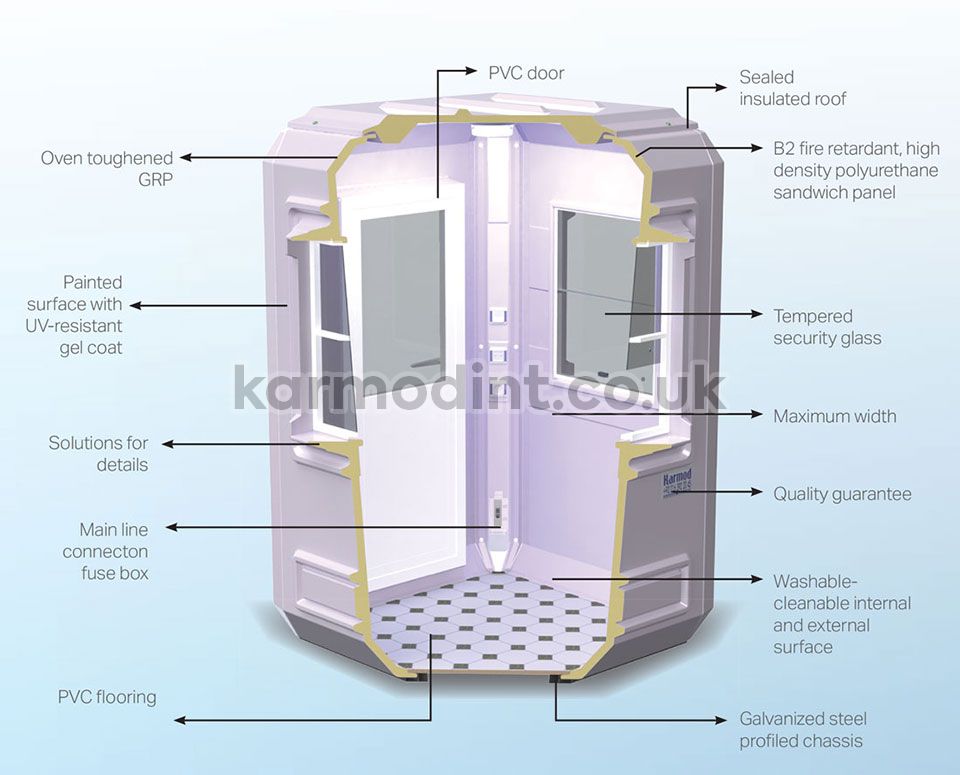

| OUTER WALL | |
| MOLD SYSTEM | Special shaped steel construction and aluminum molds. Cabin is made out of Polyester sandwich panel by being pressed inside the molds through an automated production technology that is one of its kind. The solvent gas is removed from gelcoat sandwich panel at 50°C. |
| CABIN MANUFACTURING SYSTEM | Being manufactured from fiber glass reinforced polyester material as double-walled polyurethane sandwich panel that is treated inside oven at 50 degrees. After screwing the specially shaped modular panels together, antibacterial neutral silicone is added, which protects the cabin against water, snow, dust, insects and bacteria. In addition to that it gives the cabin hygienic and long-lasting structure. |
| OUTER SURFACE COATING | Ultraviolet radiation resistant, polyester-based, off-white colour, isophthalic acrylic based special gelcoat is used, which gives the cabin washable, anticorrosive, and rustproof features. |
| INNER SURFACE COATING | Ultraviolet radiation resistant, polyester-based, off-white colour, isophthalic acrylic based special gelcoat is used, which gives the cabin washable, anticorrosive, and rustproof features. |
| WALL INSULATION | 40 density 35mm thick polyurethane foam is injected by using 140 bar Italian made machine. |
| INNER WALL | |
| SYSTEM | Produced as special shaped panels that are made out of Glass fiber reinforced polyester (GRP) and injected rigid polyurethane foam. |
| INNER SURFACE COATING | The composite panels are formed from isophtalic acrylic special bright off white (fluorescent) colour with gelcoat and fiberglass reinforced polyester. |
| WALL INSULATION | 42 density new generation gaseous rigid polyurethane foam is injected with 35mm thickness by using high pressure machine inside the panels, which provides high head and sound insulation. |
| GENERAL OUTER WALL SPECIFICATIONS | |
| Outer and inner surfaces of the panels of Karmod cabins are manufactured from off-white coloured gelcoat material that is resistant for temperatuve between +60°C and -50°C. Inner and outer panels are resistant to weather conditions and have anti-corrosive properties. The cabin panels are washable, stainless , rot-proof and easy to clean. | |
| ROOF | |
| ROOF SYSTEM | Being manufactured from fiber glass reinforced polyester material as double-walled polyurethane sandwich panel. After screwing the specially shaped modular roof panels together with sealed bolts, antibacterial neutral silicone is added, which protects the cabin agains water, snow, dust, insects and bacteria. In addition to that it gives the cabin hygienic and long-lasting structure. |
| ROOF INSULATION | 42 density Polyurethane foam is injected. |
| INNER SURFACE COATING | Ultraviolet radiation resistant, polyester-based, off-white colour, isophthalic acrylic based special gelcoat is used, which gives the cabin washable, anticorrosive, and rustproof features. |
| OUTER SURFACE COATING | Ultraviolet radiation resistant, polyester-based, off-white colour, isophthalic acrylic based special gelcoat is used, which gives the cabin washable, anticorrosive, and rustproof features. |
| DOORS | |
| OUTER DOOR | White coloured PVC door with espagnolette lock. Dimensions are 71,5cm x 184,5cm and 4mm thick door glass is used. |
| WINDOWS | |
| WINDOW | Composed of powder coated white colour aluminium frame. |
| GLASS | 4mm thick tempered glass is used. This is in order to save the people in the cabin in case of any damage of the window. |
| PAINTS | |
| METAL PARTS | From size 150 x 150 up to 270 x 270 size 1.5mm thick galvanized steel profiles are used for chassis. For cabins above 270 x 270 size the chassis are made from profiles, and one coat of Rapid prime paint is applied. |
| OPTIONAL ACCESSORIES | |
| Countertops, tables, shelves, sinks, blinds, ventilation fans, internal partitions and WC are optional accessories that can be added upon request. | |
| SHIPMENT | |
| In cases when it is impossible to lift with crane, there are specıal chassis which allow transportation with forklift or pumptruck. The vehicle must approach as close as the area where the cabin will be unloaded. | |
Security Kiosk and Gatehouse Manufacturer
Robust and cost-effective solutions, ideal for security cabins, travel, portable control offices and ticket kiosks. With an extensive choice of size and style, colours, panel options and interior fittings available, Karmod will work closely with you to ensure your security kiosk or gatehouse meets your exact requirements and Manufactures modular prefab buildings for use as security gatehouses, mobile office kiosks, control rooms, smoking shelters and kiosks. Buildings are made from maintenance-free glass fibre and can feature windows, doors, electrical installations, heating, storage, WC, washing and cooking facilities, and security shutters. Also offers glass fibre industrial housings and Manufactures GRP maintenance-free units and security kiosks for use as car park control cabin units, portable security rooms and general purpose shelters. Items are manufactured from single moulds, and are supplied fitted out to specification for immediate use.
Environmental Modular Kiosk Construction Solutions
Modular kiosks and security gatehouses provide modular accommodation, prefab shelter and facilities for personnel manning secure entrances, car parks, prefab ticket office kiosks or modular construction sites. Attendant’s Modular security cabins and prefab guard-booths are typically insulated, and fitted with windows, shutters and doors. They can also be equipped with services, such as portable WCs and kitchen plumbing, electrics, lighting, heating, ventilation and air conditioning. Perfect for manned security checks at entry and exit points, glass fibre security kiosks gatehouses provide safe, secure and comfortable shelter that is easy to construct and requires only a permanent base. Manufactured from tough, maintenance free glass fibre, portable GRP security kiosks come with a fully insulated roof, walls and floor and in a wide range of sizes and Suitable for modular permanent or temporary setups, they are designed and built for easy installation and relocation. For commercial, leisure and town centre environments, modular retail kiosks and prefab guard-booths have a more sympathetic or ornate appearance, and hatches for selling merchandise.
